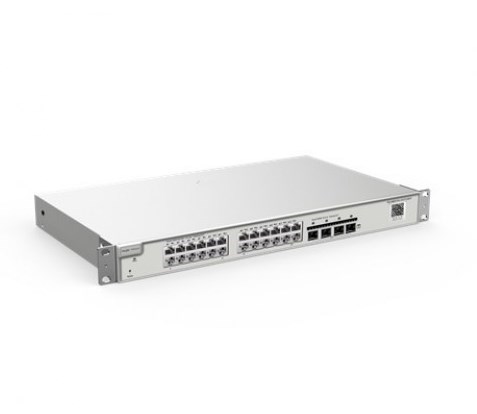

Ruijie-Reyee RG-NBS5200-24GT4XS 24-port Gigabit Layer 3 Cloud Managed Switch with 4 SFP+ (10G) Uplink Slots

 Περιγραφή

The Ruijie-Reyee RG-NBS5200-24GT4XS is a 24-Port Gigabit Layer 3 Cloud Managed non-PoE Switch with 4 (10G) SFP+ Uplink Slots. Ruijie-Reyee RG-NBS5200 series switches are a new generation of L3 access switches that integrate safety, intelligence and 10 Gigabit interfaces, particularly suitable for the convergence or access of campus networks. The flexible Gigabit port configuration, 10 Gigabit uplink interface, and continuous software upgrade capabilities can be developed according to changes in network and application requirements to protect user investment.

Benefits:

  • Enterprise-class Quality Ensures High Performance
  • Dynamic routing allows traffic to be routed at Layer 3
  • 6KV surge protection reduces the possibility of port damage
  • Multiple Security Policies Protect Your Network
  • Lifetime management on Ruijie Cloud, monitor switch statistics at anytime anywhere
  • SON, zero touch provisioning to Cloud
  • Configure VLANs on Ruijie Cloud APP
  • Easy maintainance, save onsite time and cost

Key Features:

  • 24x 10/100/1000Base-T Ports
  • 4x SFP+ (10G) Uplink Slots
  • Layer Type: Layer 3
  • Switching capacity: 128 Gbps
  • MAC address table: 16000
  • Forwarding rate: 96 Mpps
  • Packet Buffer 12 Mbit
  • Flash Memory: 256MB
  • MTBF:  > 200,000
  • Maximum VLAN: 4094
  • Port surge 6 kV
  • Jumbo Frame (MTU): 9216
  • Flow Control
  • STP (IEEE 802.1d) / RSTP (IEEE 802.1w) / MSTP (IEEE 802.1s)
  • Port Fast / BPDU Guard
  • Auto Errdisable Recovery
  • Link Aggregation Group 16
  • Max. Member per Group 8
  • Unknow Unicast Storm Suppression
  • Multicast / Broadcast Storm Suppression
  • Many-to-One Mirroring
  • VLAN Range 1-4094
  • Port-based VLAN / MAC-based VLAN / IP-based VLAN / Voice VLAN
  • RLDP / LLDP / LLDP-MED
  • Cable Testing / IGMP Snooping v1/v2/v3
  • Ping / Traceroute
  • ACL Entries 1900
  • Static Routing
  • IP Standard ACL / MAC-based Extended ACL / IP-based Extended ACL
  • Port-based Rate Limit (Ingress/Egress)
  • SNMP v1/v2c/v3
  • OSPF / RIP / 802.1X / IPV6
  • DHCP Server
  • Web Management
  • Management IP 10.44.77.200
  • HTTP/HTTPS
  • Cloud Management
  • SON (Self-Organizing Network) with IP
  • Camera Recognition
  • Loop Prevention / Loop Notification
  • Protection Port / IP Source Guard
  • Anti-ARP Spoofing
  • DHCP Snooping / DHCP Client
  • Reset Button
  • Fixed Power supply, 100-240V AC, 1.5A
  • Power Consumption ≤ 28W
  • Single Fan: Left-to-Rear airflow / Fan Adaptive Speed Adjustment
  • Acoustic Noise < 45dB
  • EEE Compliant
  • CE, RoHS Certified
  • Dimensions (WxDxH) 440mm x 207.5mm x 43.6mm
  • Weight (With package) 2.9kg
  • Operating temperature 0°C to 40°C
  • Operating humidity 10% to 90% RH
  • 19-inch Rack-mountable Steel Case
  • 5 Year Warranty
