TL-SG2016P

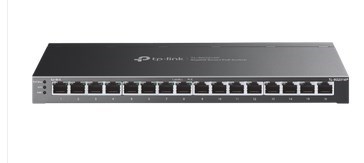

TP-Link TL-SG2016P JetStream™ 16-Port Gigabit Smart Switch

Διαθεσιμότητα: 1-3 ημέρες
286.44€ 381.92€
− +

Features

• JetStream™  16-Port Gigabit Smart Switch with 8-Port PoE+
• 802.3af/at
• 120 W PoE Power
• Desktop Steel Case
• Integration with Omada SDN Controller


Specifications
Hardware Features Standards and Protocols IEEE 802.3i, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x
Interface  • 16× 10/100/1000 Mbps RJ45 Ports (Ports 1–8 Support 802.3at/af PoE+)
• Auto-Negotiation/Auto MDI/MDIX
Network Media  • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
Fan Quantity Fanless
Power Supply • External Power Adapter (Output: 53.5 VDC/ 2.43 A)
PoE Ports (RJ45)   • Standard: 802.3af/at compliant
• PoE Ports: 8 Ports
• Power Supply: 120 W*
Dimensions ( W x D x H ) 11.3 x 4.4 x 1.0 in (286 x 111.7 x 25.4 mm)
Max Power Consumption 146.5 W (110 V/60 Hz) (with 120 W PD connected)
Max Heat Dissipation 499.98 BTU/hr (110 V/60 Hz) (with 120 W PD connected)
Performance Bandwidth/Backplane 16 Gbps
MAC Address Table 8k
Packet Buffer Memory 4.1 Mbit
Jumbo Frame 9 KB
Other          Certification CE, FCC, RoHS
Package Contents    • TL-SG2016P
• Power Adapter
• Installation Guide
• Rubber Feet
System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
Environment    • Operating Temperature: 0–40 ℃ (32–104 ℉);
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
