Description

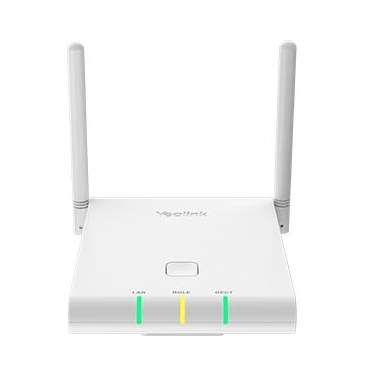

The Yealink W90 DECT IP Multi-Cell System consists of the DECT Manager W90DM and base station W90B. This system provides a seamless handover and industry-leading roaming solution for full scenarios, including warehouses, hospitals, hotels, supermarkets chains, cruises, authorized car dealerships, offices, retail formats, etc.
With stable roaming and simple deployment, Yealink W90 DECT IP multi-cell system ensures fluent communication across wide coverage and multi-locations
| Specifications | ||
| Phone Features | Sync over the DECT and LAN (Seamless handover and roaming) | |
| Each Multicell System | Up to 60 base stations | |
| Up to 250 handsets | ||
| Up to 250 VoIP accounts | ||
| Up to 250 simultaneous calls | ||
| Up to 8 WB (4 active handsets) calls per base | ||
| Up to 8 NB calls per base | ||
| Up to 2 simultaneous calls per handset | ||
| Call hold, call transfer, 3-way conference | ||
| Switching between calls | ||
| Call waiting, mute, silence, DND | ||
| Caller ID with name and number | ||
| Anonymous call, Anonymous call rejection | ||
| Call forward (always/busy/no answer) | ||
| Speed dial, voicemail, redial | ||
| Message Waiting Indication (MWI) | ||
| Music on hold (server-based) | ||
| Local phonebook for up to 100 entries per handset | ||
| Remote phonebook/LDAP/XML phonebook | ||
| Phonebook search/import/export | ||
| Call history (all/missed/placed/received | ||
| Reset to factory, reboot | ||
| Keypad lock, emergency call | ||
| Broadsoft directory, BroadSoft call log | ||
| Broadworks feature key synchronization | ||
| Shared Call Appearance (SCA) | ||
| XML browser | ||
| IPUI registration | ||
| User access level | ||
| Management | Auto-provision via TFTP/FTP/HTTP/HTTPS/RPS | |
| Auto-provision with PnP | ||
| Handset upgrade: OTA (Over-The-Air) | ||
| Configuration: browser/phone/auto-provision | ||
| Trace package and system log export | ||
| Audio Features | Full-duplex speakerphone | |
| Hearing Aid Compatibility (HAC) compliant | ||
| DTMF | ||
| Wideband codec: Opus, AMR-WB (optional), G.722 | ||
| Narrowband codec: AMR-NB (optional), PCMU,PCMA, G.726, G.729, iLBC | ||
| VAD, CNG, AGC, PLC, AJB | ||
| Network Features | SIP v1 (RFC2543), v2 (RFC3261) | |
| SNTP/NTP | ||
| VLAN (802.1Q and 802.1P) | ||
| 802.1x, LLDP | ||
| STUN Client (NAT Traversal) | ||
| UDP/TCP/TLS | ||
| IP assignment: static/DHCP | ||
| Support outbound proxy server backup | ||
| Security | Open VPN | |
| Transport Layer Security (TLS1.0/TLS1.1/ TLS1.2) | ||
| HTTPS (server/client), SRTP | ||
| Digest authentication | ||
| Secure configuration file via AES encryption | ||
| Support SHA256/SHA512/SHA384 | ||
| DECT | Frequency bands: 1880 – 1900 MHz (Europe), 1920 – 1930 MHz (US) | |
| DECT Standards: CAT-iq2.0 | ||
| Interface | 1 x RJ45 10/100M Ethernet port | |
| Power over Ethernet (IEEE 802.3af), Class 1 | ||
| Physical Features | Indoor Range: 30m~50m (The ideal distance is 50m) | |
| Outdoor Range: 300m (in ideal conditions) | ||
| Wall mountable | ||
| Three LED indicators on W90DM/W90B: | 1 x LAN (Power Indicator & Network Status) LED | |
| 1 x Role LED | ||
| 1 x DECT LED | ||
| External Yealink AC adapter: AC 100-240V Input and DC 5V/1.2A Output | ||
| Color | Pearl White | |
| Dimension | 134mm x 100mm x 28mm | |
| Operating humidity | 10~95% | |
| Operating temperature | 0~+40°C (+32~104°F) | |
| Package Features | Package contents | W90DM/W90B |
| Expansion Screws | ||
| Quick Start Guide | ||
| Power Adapter (optional) | ||
| Qty/CNT | 10 PCS | |
| Giftbox size | 158 mm x 203 mm x 63 mm | |
| Carton meas. | 420 mm x 338 mm x 167 mm | |
| Net Weight | 2.8kg | |
| Gross Weight | 3.4kg | |
